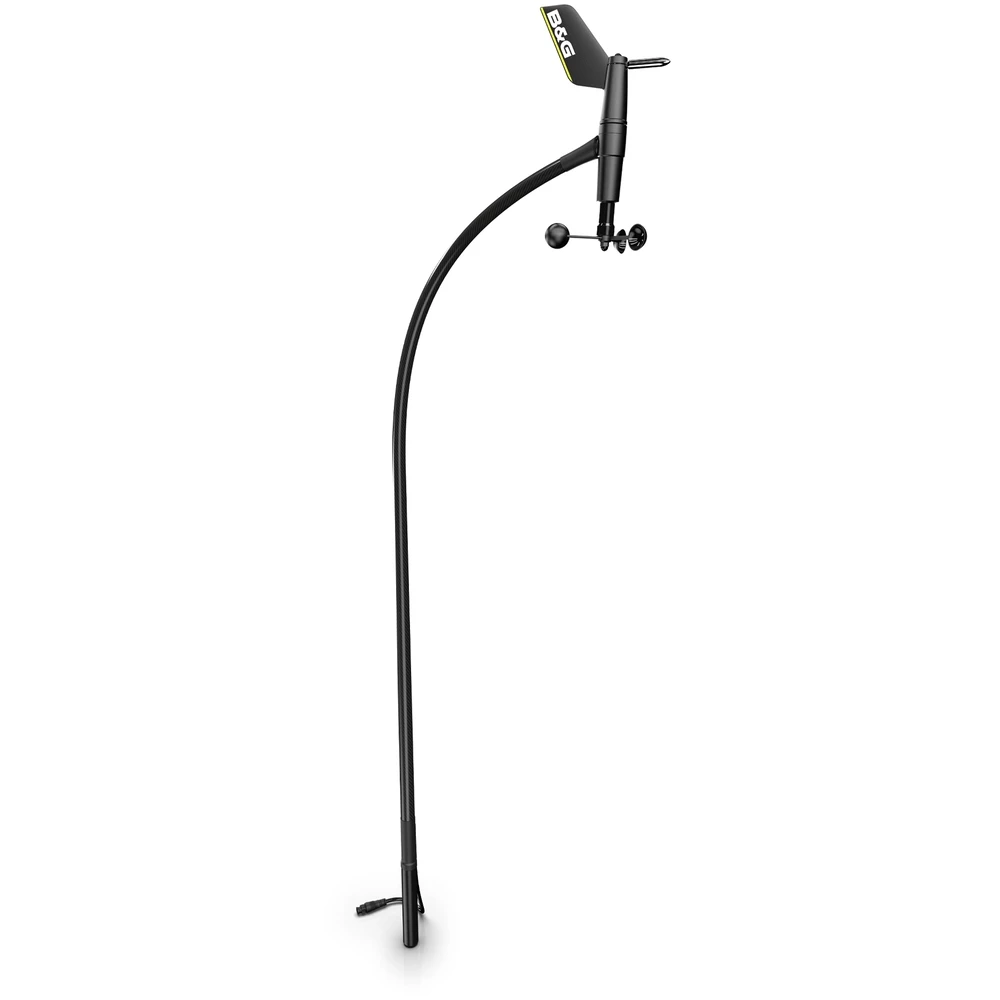

B&G B&G WS720S Vertical Wind Sensor

The WS720 high-performance wind sensor offers superb aerodynamics
and accuracy. A 1.1m high modulus Ocean spec carbon spar elevates
the wind sensor into clear air, above any sail-plan disturbance at
the masthead.

WS700 Series Wind Sensors

The WS700 series is the ultimate wind sensor for performance
sailing, providing the most accurate wind angle and speed data. The
new one-piece vane design gives superb aerodynamics and stability,
as a result of over 200,000 hours of combined design and wind
tunnel testing.

Higher altitude for clearer readings

The vertical spar minimises the effect of sail-plan disturbance
on wind measurement ensuring the best performance with minimum
calibration. This means reliable True Wind Direction to make
precise race calls when needed and better steer-to-wind performance
in all conditions when on autopilot.

Flexibility

Choose from 4 options of vertical high-modulus carbon spars from
0.8 to 1.8m in standard or ocean specification.

WS700 series follows the same physical mounting as previous
models (VHMU) providing an easy upgrade path.

Spar sizes are indicative

Wide compatibility

Connect directly to H5000 or WTP3 via a NMEA 0183 input or to
NMEA 2000 via the wired interface (sold separately).

Straightforward installation

WS700 connects to your instrument system via a single mast
cable, available in 4 different lengths from 25 to 80m.

Features:

• High precision and accuracy
• High performance aerodynamic design
• Ocean Race proven
• Straightforward installation

Specifications:

• Waterproofrating: IPX6
• Power Consumption typical: < 0.2W
• Weight: 0.5 kg (1.1 lbs)
• Supply Voltage: 12V DC (9 – 16V DC)
• Operating Temperature Range: -15C to +55C (5F to 131F)
• Warranty Period: 2 Years
• Storage Temperature Range: -20C to +60C (4F to 140F)
• Dimensions W x H x D: 356 x 1050 x 25mm (14 x 42 x 1′)
  nominal
• Approvals Compliance: IEC/EN 60945
• NMEA 0183 Sentences supported: MWV,R at 10Hz
