Designed for coastal cruising and club racing

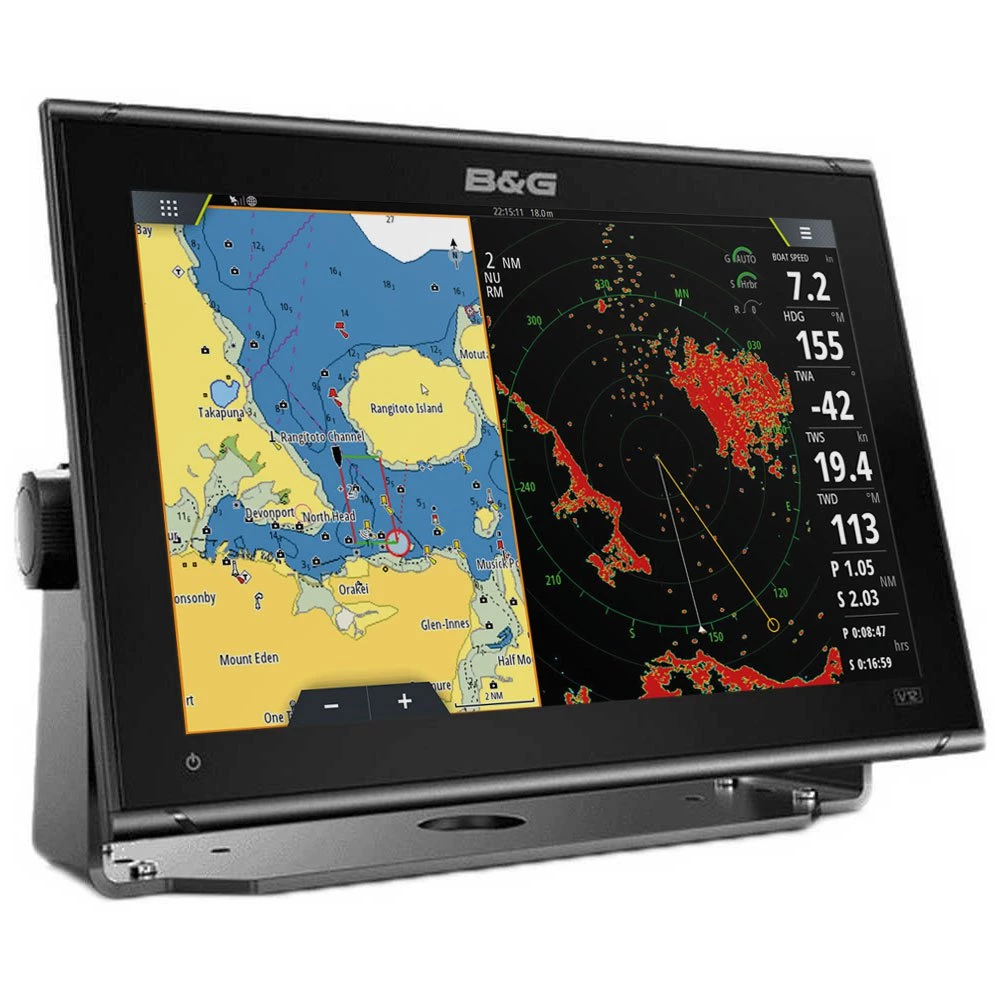

The easy-to-use, intuitive 12-inch B&G Vulcan 12 Multifunction Sailing Chartplotter is packed with B&Gs unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000, Broadband Radar, ForwardScan and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.

Welcome to the B&G Vulcan range
B&G’s Vulcan range of sailing chartplotters take the guesswork out of sailing. Whether youre an experienced sailor or just starting out, Vulcan is packed with features that will help you get the most from your time on the water.

Easy to use touch screen
B&G designed Vulcan chartplotters to be as intuitive as a tablet or smartphone. The low-profile, super-bright display is visible even in direct sunlight, and the responsive touch screen gives fingertip control, even in flying spray and a rough sea state. Pinch-to-zoom, swipe and tap controls let you input waypoints and routes and view chart details with ease.

Simple to add Waypoints and Routes
Let Vulcan guide you safely to your destination: place waypoints and routes with a single tap on the chart and let Vulcan take you there with clear, intuitive graphics and data for guidance. Add a compatible chart card to benefit from autorouting and let Vulcans intelligent software choose the best and safest route to your destination.

Dedicated Sailing Features for cruising and racing
You can use Vulcan as a simple chartplotter as soon as you connect it to power, or for more advanced features, add to speed, depth and wind instruments. Let Vulcan take care of the complex calculations leaving you free to relax and enjoy the sailing.

SailSteer
See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.

Laylines
Let Vulcan do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.

SailingTime
Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if its dead upwind. SailingTime calculates the time youll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.

RacePanel
Be on the line when the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.

Autopilot Control
Put Vulcan at the heart of your boat and take control of your B&G autopilot from your Vulcans touchscreen. With an installed controller elsewhere, the intuitive controls can be accessed from any screen with a simple tap and allow you to alter course, tack, gybe, sail to wind or compass. Take advantage of the advanced sailing algorithms that make B&G Pilots as good as the best helmsman all from your Vulcans touch screen.

Mirror the screen on your phone
Vulcans sunlight-viewable, waterproof display gives you a reliable navigation display at the helm or chart table and now you can see it from anywhere on board on your smartphone or tablet. Built in WiFi allows you to mirror and control the screen from anywhere on board using the Link App on your mobile device, for a cost-effective dual-station solution. Back up your settings and waypoints, or connect to a Wireless hotspot or marina WiFi to download weather forecasts and software updates straight to your device. Connect your phone via Bluetooth to read and respond to text messages from the chartplotters display.

A range of mounting options
Get up and running quickly: Vulcan chartplotters are optimised for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile glass helm look. Alternatively, mount in minutes using the supplied bracket on horizontal, vertical or overhead surfaces.

B&G Vulcan 12 Multifunction Sailing Chartplotter Features:

Easy to use multi-touch display
Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
Easy to integrate Connect Vulcan to an existing system and add basic sailing components
Broadband Radar and ForwardScan ready
Integrated Wi-Fi
Control your B&G Pilot
Instrument data display

B&G Vulcan 12 Multifunction Sailing Chartplotter Specifications:

Display Resolution: 1280 x 800
Screen Brightness: 1200 nits
Waterproofrating: IPX 6 and 7
Operating Temperature Range: ‘-15C to +55C (5 F to 131 F)
Storage Temperature Range: ‘-20C to +60C (4F to 140F)
Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit. Radar and
Sirius (USA only) connectivity only (unless unlocked)
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
Supply Voltage: 10 – 17 V DC
Update rate: 10 Hz
Display Size: 12 inches
SD Card Storage: 2 MicroSD slots, max. 32GB each. >32 GB format to NTFS
Warranty Period: 2 Years
Weight: 2.242 kg (4.94 lbs)
Power Consumption typical: 24 W
Power Consumption max: 30 W
Dimensions W x H x D: 310 mm x 219 mm x 82.7 mm (12.20″ x 8.63″ x 3.26″) (no bracket)
GPS Receiver Channels: 32 Channels
Recommended Fuse Rating: 3A
Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing Angles: 80 top/bottom, 80 left/right
Internal Storage: 90MB
Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV. (Boat type set to Sail)
Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, Wind, Wind NAV. (Boat type set to Sail).
Requires STBY button or Controller with STBY button to commission
Digital Switching: BEP C-Zone
Mounting Type: Bracket or Panel
Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN
60945:2002 EN 300 440-2, V1.4.1
Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN
60945:2002 EN 300 440-2, V1.4.1
Time to First Fix: Cold start less than 90 seconds exposed to
open sky, Satellite Reacquisition 5 sec
NMEA 0183 Sentences supported: Exports NMEA0183 over WiFi
Radar compatibility: Halo, Broadband, HD Radars
Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) ,
C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan.
Sinle 9 Pin Xsonic Connector
Item Connectivity WiFi: Internal
Bluetooth: Internal
GPS: Internal, 10Hz, WASS, MSAS, EGNOS
PC Connectivity: None
Video: None
AIS: Receive AIS data over NMEA 2000 only
N2K PGNs: Receive only59392 ISO Acknowledgement, 59904 ISO
Request, 60928 ISO Address Claim, 65285 Temperature with Instance,
65323 Data User Group Request, 65325 Reprogram Status, 65341
Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of
Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update,
127489 Engine Parameters, Dynamic, 127493 Transmission Parameters,
Dynamic, 127503 AC input status, 127504 AC Output Status, 127505
Fluid Level, 127506 DC Detailed Status, 127507 Charger Status,
127508 Battery Status, 127509 Inverter Status, 129033 Time and
Date, 129038 AIS Class A Position Report, 129039 AIS Class B
Position Report, 129040 AIS Class B Extended Position Report,
129794 AIS Class A Static and Voyage Related Data, 129801 AIS
Addressed Safety Related Message, 129802 AIS Safety Related
Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B
CS Static Data Report, Part A, 129810 AIS Class B CS Static Data
Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576
Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply,
130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used –
High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid
Level Warning, 130843 Sonar Status, Frequency and DSP
Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289
Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear
Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO
Command Group Function, 126992 System Time, 126996 Product Info,
127237 Heading/Track Control, 127250 Vessel Heading, 127258
Magnetic Variation, 128259 Speed, Water referenced, 128267 Water
Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026
COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross
Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS
Sats in View, 130074 Route and WP Service – WP List – WP Name and
Position, 130306 Wind Data, 130310 Environmental Parameters, 130311
Environmental Parameters, 130312 Temperature, 130577 Direction
Data, 130840 Data User Group Configuration, 130845 Parameter
Handle, 130850 Event Command, 130831 Suzuki Engine and Storage
Device Config, 130835 SetEngineAndTankConfiguration, 130839
Pressure Insect ConfigurationTransmit only65287 Configure
Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285
Route/Waypoint Data, 130818 Reprogram Data, 130819 Request
Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect
Configuration, 130837 Fuel Flow Turbine Configuration
Weather: SiriusXM via WM-3 (USA only), GRIB
Languages: Standard Language Pack: English (US), English (UK),
Danish, German, Spanish, Finnish, French, Greek, Icelandic,
Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language
unlocks: Asian Language Pack: English (US), Japanese, Korean, Thai,
Chinese. Eastern European Language Pack: English (US), English
(UK), Bulgarian, German, Spanish, French, Hebrew, Croatian,
Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish.
Russia/Ukraine Language pack: English (US), English(UK), German,
Spanish, French, Italian, Russian, Ukrainian. Middle Eastern
Language Pack: English (US), English (UK), Arabic, German, Spanish,
Farsi, French, Italian
Cartography included: TBD
Interface: Touch screen, OP40 or OP50 controller via NEA
2000
Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag,
Square-turn, Lazy S-turn, Depth contour tracking
Multimedia: via SonicHub2, FusionLink, Sirius, JL Audio. USA
only, AUST. and NZ only)
Correction: WASS, MSAS, EGNOS, GLONASS, Galileo ,BeiDou. Limited by network
Backlight Color: White
