Sailing data exactly where you need to see it

The B&G Triton2 Digital Instrument Display is
a multi-purpose sailing instrument and autopilot display with a
4.1-inch colour screen, optically bonded for zero condensation and
featuring trans-flective LCD technology for exceptional contrast
and visibility in all lighting conditions. 8mm mounting height
matches other B&G MFDs and system components.

Your course looks clearer with Triton2
See the data you rely on: Speed, depth, wind and more, in full
colour on Triton2’s low-profile, intuitive displays. The 4.1″
screen will show you what you need to see, night and day – and even
in direct sunlight – giving you all the information you need to
sail your boat smarter and in safety, whatever the weather.

See what you want to see
Customise Triton2 to show what you want to see, placed exactly
where you want to see it. Simple numerical screens show any data
available on your network, while the intuitive SailSteer display
places everything you need in one place, with wind data and boat
speed overlaid on an intuitive diagram that also shows laylines,
heading and waypoint information. To help keep you safe on the
water, Triton2 will also display AIS data for a clear view of
surrounding vessels – and with a linked DSC VHF radio you can call
them, straight from the instrument display.

Low profile screen
Triton2’s low profile design will enhance any cockpit. Standing
only 8mm proud, the sleek display has wide viewing angles and
exceptional brightness, but consumes a negligible 150mA of power.
So, whether you mount the display at the helm, on the bulkhead or
over the hatch, you’ll always be able to see the data you need.

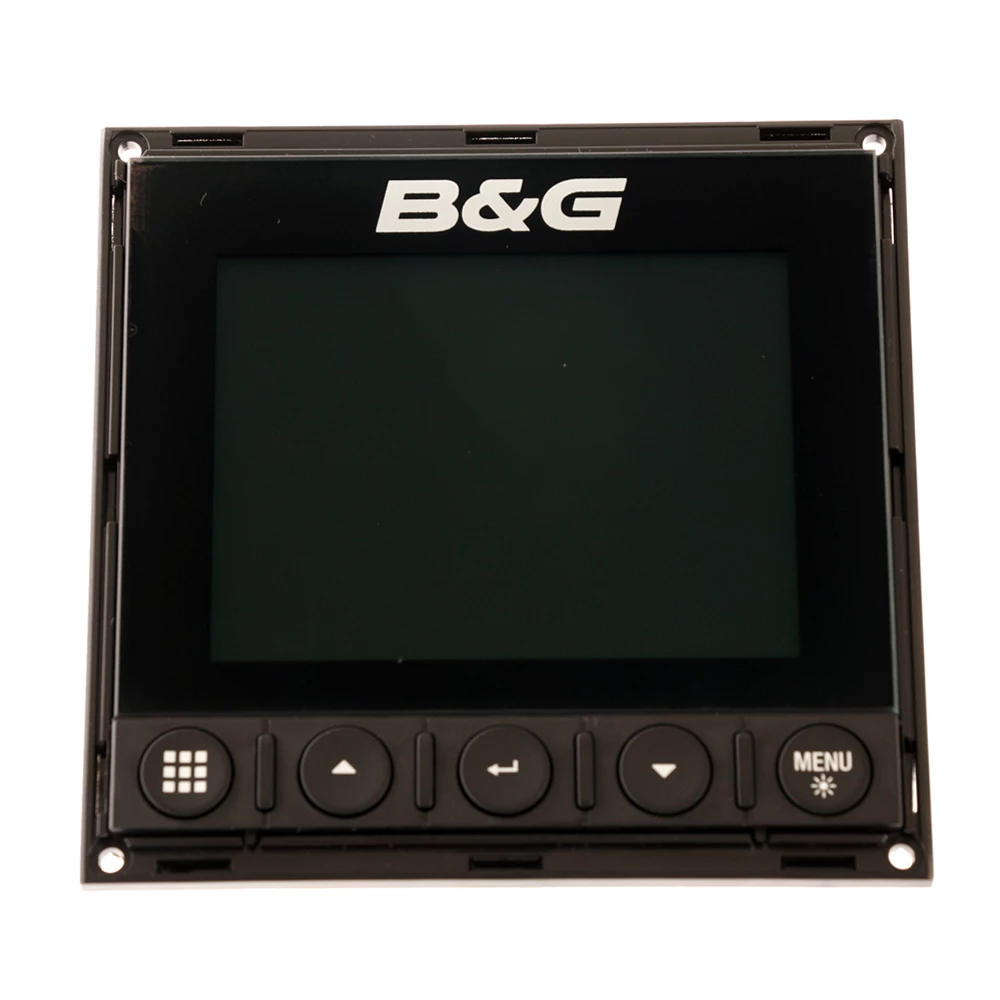

B&G Triton2 Digital Instrument Display
Features:

Optical Bonding: sporting an Optically Bonded 4.1-inch LCD
display, see clearly in all conditions with its large clear colour
display 100% free from condensation or fogging
Efficient LCD Technology: transflective LCD technology uses
reflected ambient light to enhance day-time visibility, providing
the clearest sailing dedicated display available. LED backlighting
provides highly adjustable illumination when required, making
Triton2 exceptionally efficient and extending time available from
your battery capacity
Easy to Use: Triton2 provides simple on-screen menus controlled
by soft-touch and reliable waterproof buttons
Intuitive design makes it easy to configure and use your
display
Low Profile Design: at just 8mm thin the Triton2 adds a sleek
look to any boat. It won’t get in the way, catch ropes or offend
the eye
NMEA 2000 Certified: You can be confident when adding Triton2
to an existing NMEA 2000 system. NMEA 2000 certification also opens
up a wide variety of future expansion options for your Triton2
system
Easy Installation: a straight-forward front mounting method and
a clip-on bezel over the (4) mounting screws combine with a single
NMEA 2000 connection carrying both power and networked
data
Simple and quick to install
Autopilot Integration: Triton2 will display B&G Pilot data
on a clear status screen
With the addition of a Triton2 Pilot keypad the instrument
becomes a fully functional Pilot controller

B&G Triton2 Digital Instrument Display
Specifications:

Display Resolution: 320 x 240, 4:3
Waterproof rating: IPx7
Weight: 0.32 kg (0.7 lbs)
NMEA 2000 Connectivity: 1 x NMEA2000 Micro-C port, 3
LEN
Power Consumption typical: 1.4W
Power Consumption max: 1.8W
Dimensions (W x H x D): 118 x 115 x 37mm (4.6 x 4.5 x
1.4″)
Supply Voltage: 12V DC (10-16V DC)
Operating Temperature Range: -25 to +65ºC (-13ºF to
+149ºF)
Compass Safe: 300mm (1.0′)
Storage Temperature Range: -40 to +85ºC (-40ºF to
+185ºF)
Recommended Fuse Rating: 5A
Languages: English, French, Spanish, German, Italian, Swedish,
Croatian, Norwegian
Mounting Type: Flush
Approvals Compliance: IEC/EN 60945
Interface: Keypad
Humidity: Up to 95% RH
Backlight Colour: White, Red, Green, Blue
