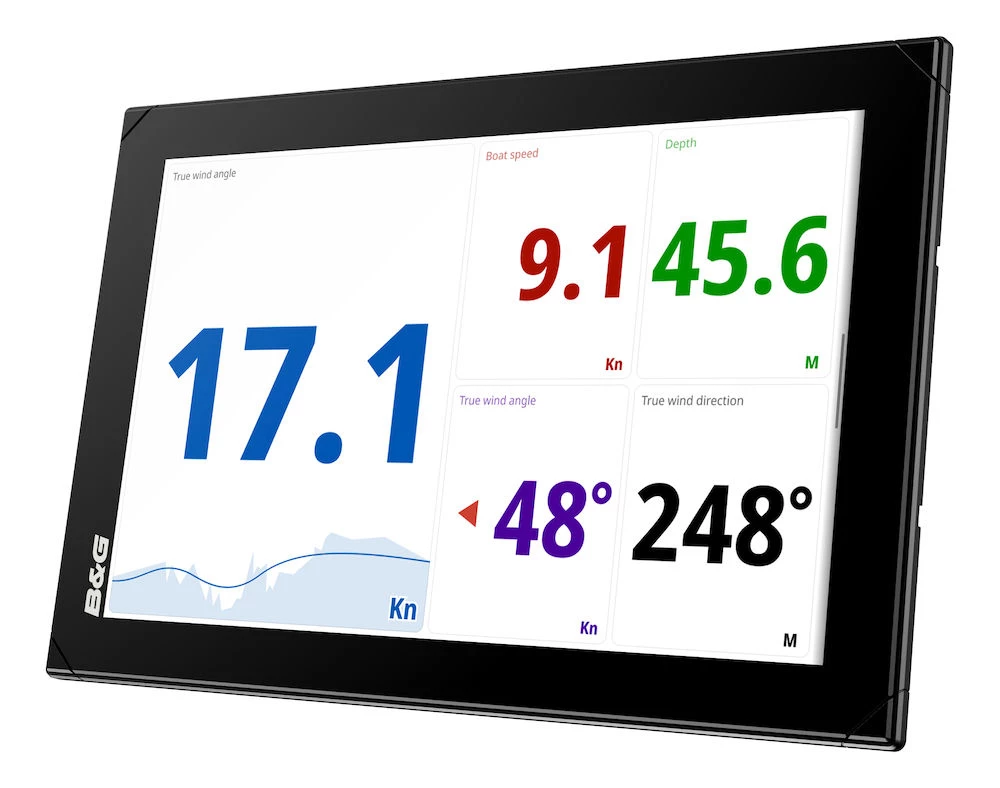

Nemesis 12 is the perfect solution for displaying all the crucial sailing data you need, on the mast or at the helm. The super bright touch screen provides outstanding visibility, from anywhere on the boat, in all conditions. Completely customisable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own. You can view your trusted sailing data in precisely the way you want to, ensuring you get the most accurate data right in front of you, all the time.

THE INTELLIGENT SAILING DISPLAY

This intelligent sailing display offers unparalleled visibility from all angles and distances on-board, and with complete data customisation or a choice of easy to use multi-function templates and automatic dashboards based on your point of sail, whether racing or cruising, you will never be out of touch. The Nemesis display allows you to define what data you see, when and how you see it, no matter what the conditions, providing an intuitive link between your trusted instrument network and the real world.

VISIBILITY and VERSATILITY

A bright touch screen, with super-wide viewing angles and the ability to view with polarised sunglasses from anywhere on-board. With adjustable data sizes, palettes and backlighting, this display offers optimal viewing in all conditions, whether on the mast or in the cockpit.

COMPLETE CUSTOMISATION

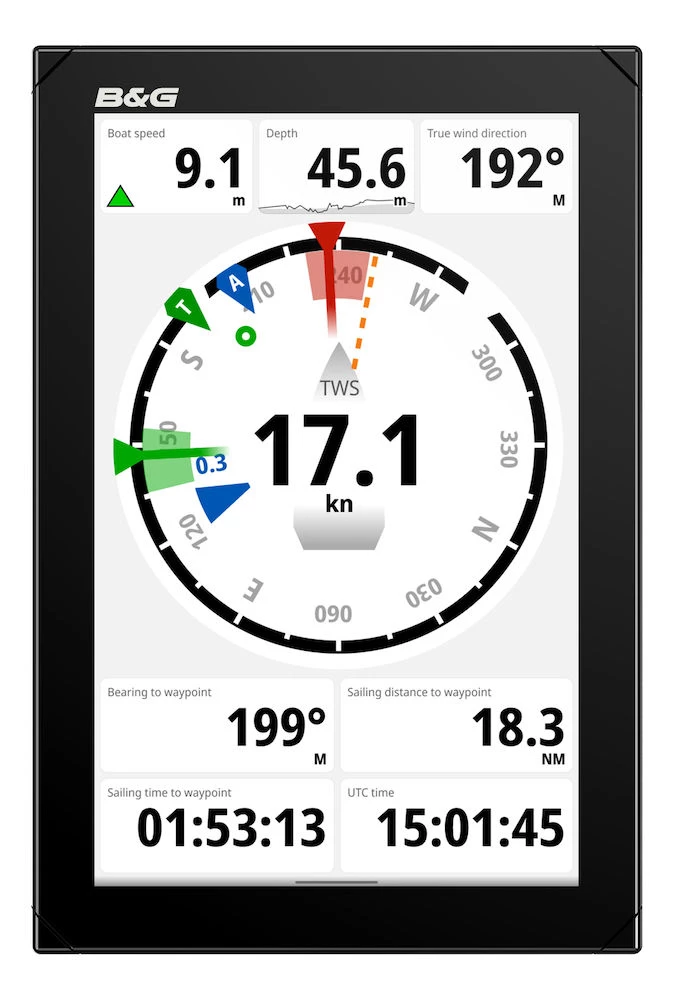

This all-in-one customisable display can be mounted in either portrait or landscape. The easy to use drag and drop editor provides a wide choice of graphical gauges, SailSteer, tank levels, digital data, IP camera views, histograms and images. With this, you have the freedom to select the data, visualisation and set size and position that you want; or you can simply choose from a choice of pre-selected built-in BandG dashboards and templates.

Additional automatic context modes allow you to choose the sailing data you want to display based on your point of sail or sailing mode: Upwind, Reaching, Downwind, Pre-start or Motoring.

(Requires H5000 CPU)

INTEGRATION and CONTROL

The use of commercial grade components, hours of testing and development by sailors in all conditions, combined with the most accurate sailing data available from your BandG network and instruments, will ensure you have complete trust in Nemesis. The reliability and accuracy of both the data and the display will give you the confidence you need to make the right decisions. Control your display on the touch screen or via an Apple Watch – compatible with Apple Watch Series 3 and above.

Features:

Pre-set dashboards or easy to use drag and drop editor for full customisation
Wide choice of digital data displays including graphical gauges, SailSteer, tank levels, IP camera views, histograms and images
Context modes: Upwind, Reaching, Downwind, Pre-start, Motoring
Bright touch screen, with super-wide viewing angles
Adjustable palettes and backlight for optimal view in all conditions
Mount in portrait and landscape
Connect multiple screens via the Nemesis Hub
Ethernet and/or NMEA2000

Specifications:

Specifications

Display Resolution: 1280 x 800
Screen Brightness: 1500 nits
Waterproofrating: IP67
Ethernet Ports: 1 x 100 Mbit
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C, 1 LEN
Supply Voltage: 10 – 32 V DC
Operating Temperature Range: -15 degrees C to +55 degrees C (-5 degrees F to 131 degrees F)
Power Consumption max: 19W
Recommended Fuse Rating: 2 Amp
Warranty Period: 2 years
Storage Temperature Range: -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)
Compass Safe: 300mm (12′)
Dimensions W x H x D: 310 x 208 x 72mm (12.2 x 8.2 x 2.8′)
Viewing Angles: 80 top/bottom, +/ 80 left/right
Connectivity Wi Fi: 802.11 b/g
Languages: Chinese[simplified], Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, Swedish
Mounting Type: Flush, Panel
Interface: Touch Screen
