B&G B&G NAC-3 VRF Core Pack

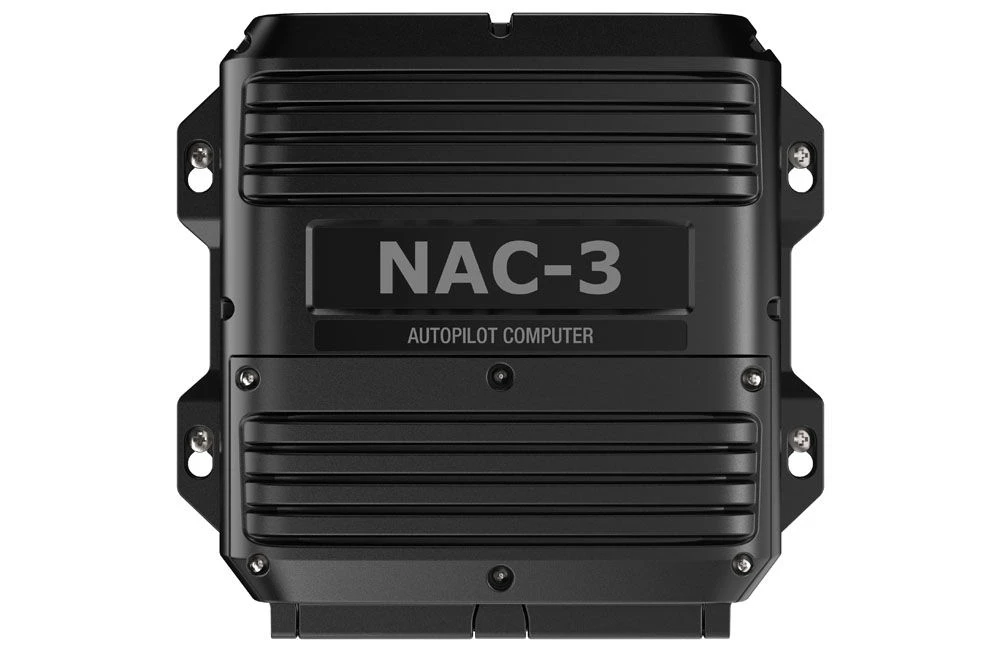

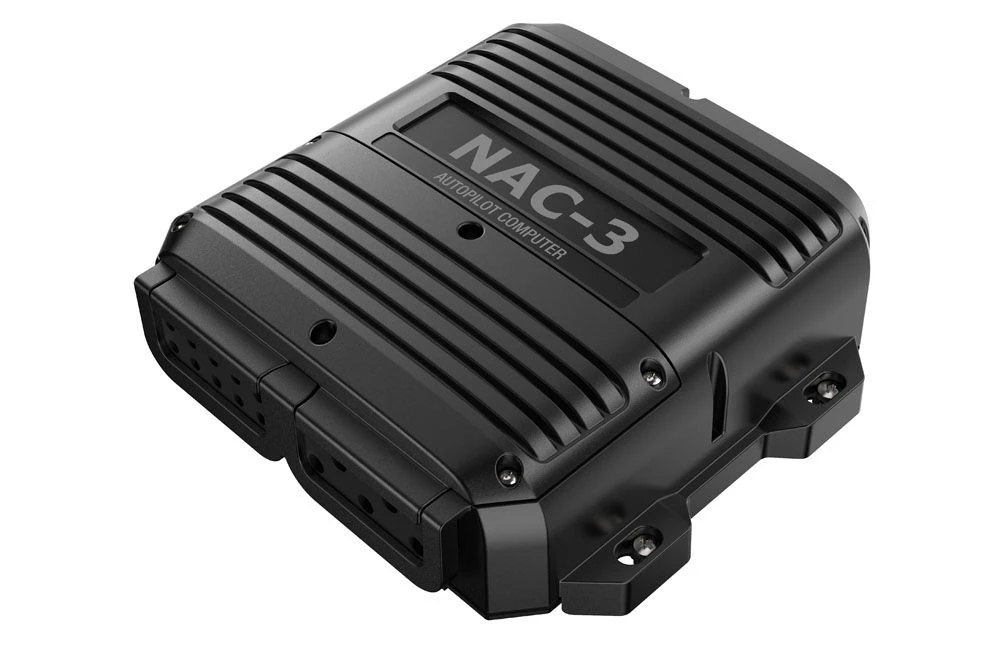

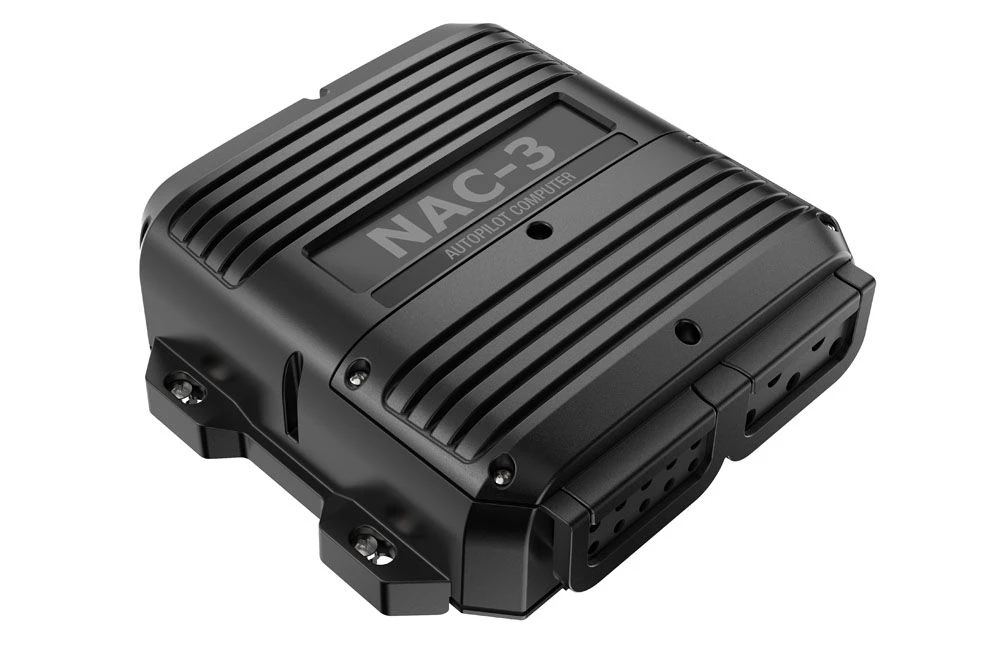

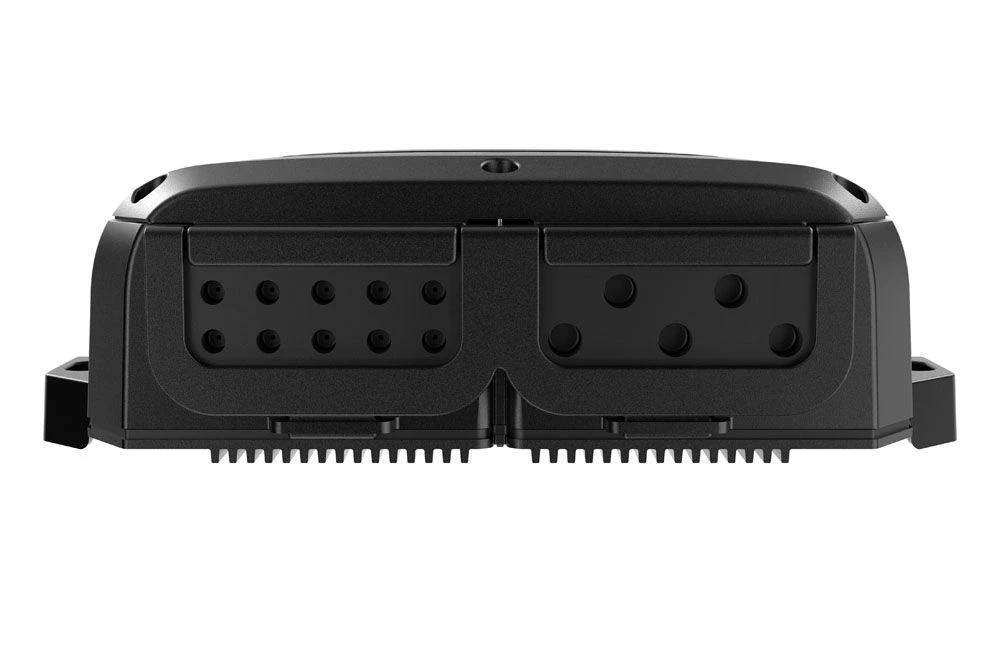

The NAC-3 Autopilot Computer is the brains behind your B&G
autopilot system. It contains the electronics needed to operate a
hydraulic steering pump or mechanical drive unit, while also
interfacing with other components including heading sensors and
rudder feedback units. The NAC-3 was designed for boats ten metres
(35 feet) or greater in length and is rated to operate high-current
pumps, mechanical drive units, and solenoid valves (30 amps
continuous/50 amps peak).

NAC-3 Autopilot Core Pack: Comprising of the high-current NAC-3
autopilot computer, Precision-9 compass, NMEA2000 Backbone kit.
Ideal for vessels above 10 metres/35 feet in length

NAC-3 Autopilot ComputerThe NAC-3 Autopilot
Computer is the brains behind your B&G autopilot system. It
contains the electronics needed to operate a hydraulic steering
pump or mechanical drive unit, while also interfacing with other
components including heading sensors and rudder feedback units. The
NAC-3 was designed for boats ten metres (35 feet) or greater in
length and is rated to operate high-current pumps, mechanical drive
units, and solenoid valves (30 amps continuous/50 amps peak).

Features:

• B&G Reflex Sailing algorithms
• Plug and Play installation
• 12/24V input 8A continuous output, 12A peak
• Solenoid output capable
• 3A clutch output
• Optional Auto/Standby Switch

Precision-9 CompassThe Precision-9 Compass
supplies heading and rate-of-turn information to Simrad, B&G
and Lowrance autopilot, radar and navigation systems. Based on
reliable solid-state sensor technology, this compact compass offers
easy installation aboard any vessel.Heading, Rate Of Turn (ROT),
roll, and pitch output over NMEA 2000Heading and ROT calculated
using sensor data from 9 axes of rotation and motionAccurate and
reliable solid-state sensor technologyHeading accuracy of 2 after
calibrationEasily adjustable mounting bracket allows bulkhead or
up-mast installationIPX7 waterproof. Best in class.Simple
installation with a single NMEA 2000 connectionRF25 Rudder Feedback
Unit

In the box:NAC-3 Course ComputerPrecision-9
CompassNMEA 2000 Backbone kitDocumentation

Features:

• Reliable autopilot performance based on Simrad Continuum
  steering technology

What’s in the box:

• Micro-C Backbone Kit
• Precision-9 Compass
• NAC-3 Autopilot Computer
