B&G B&G NAC-3 Core Pack

The NAC-3 Autopilot Computer is the brains behind your B&G
autopilot system. It contains the electronics needed to operate a
hydraulic steering pump or mechanical drive unit, while also
interfacing with other components including heading sensors and
rudder feedback units. The NAC-3 was designed for boats ten metres
(35 feet) or greater in length and is rated to operate high-current
pumps, mechanical drive units, and solenoid valves (30 amps
continuous/50 amps peak).

NAC-3 Autopilot Core Pack: Comprising the high-current NAC-3
autopilot computer, Precision-9 compass and RF-25 rudder feedback
unit. Ideal for vessels above 10 metres/35 feet in length.

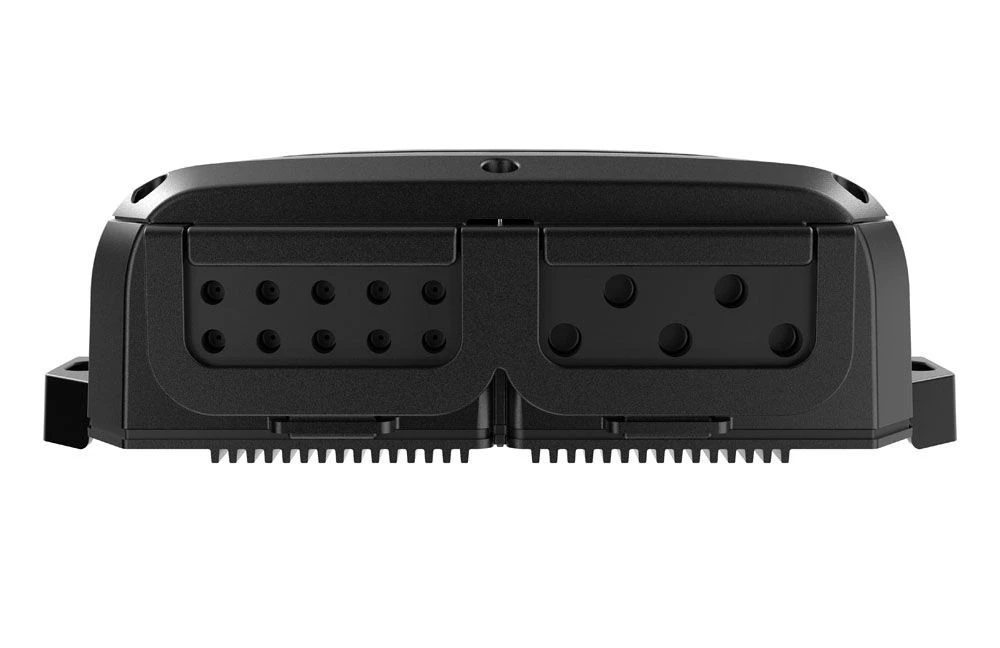

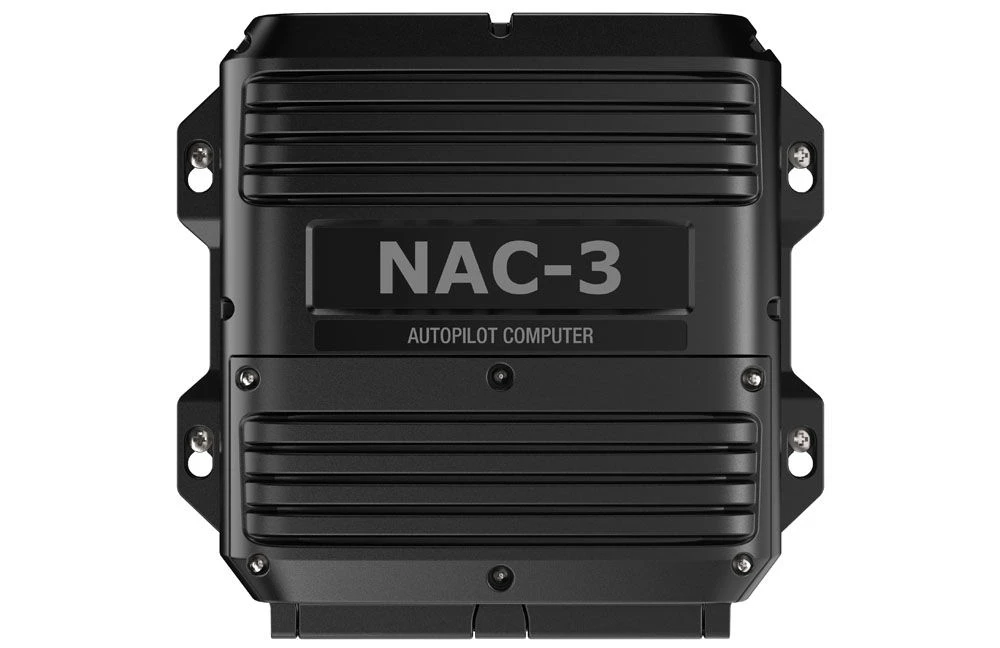

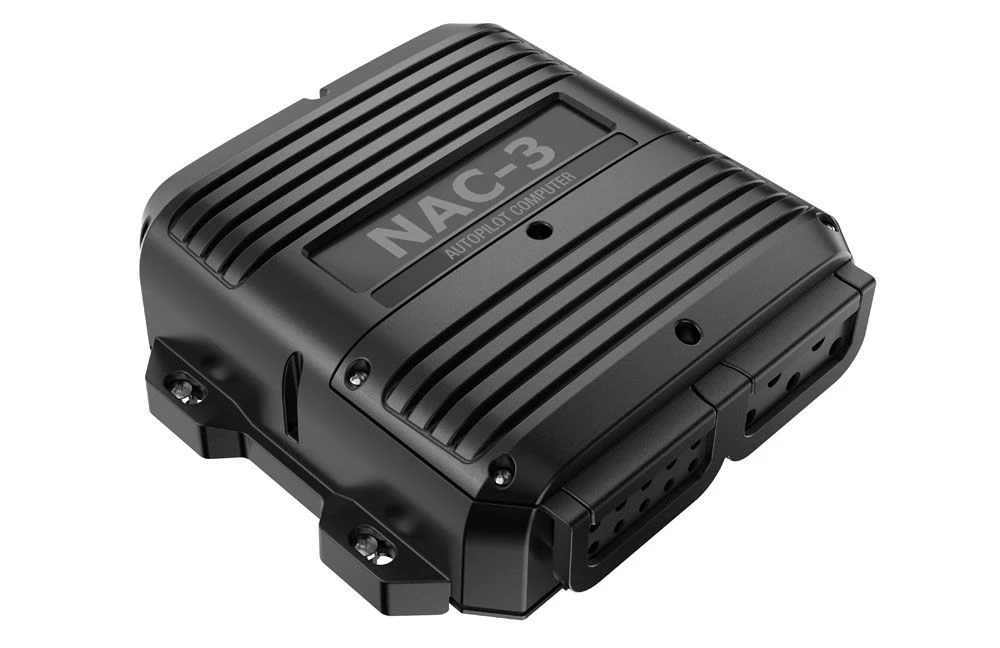

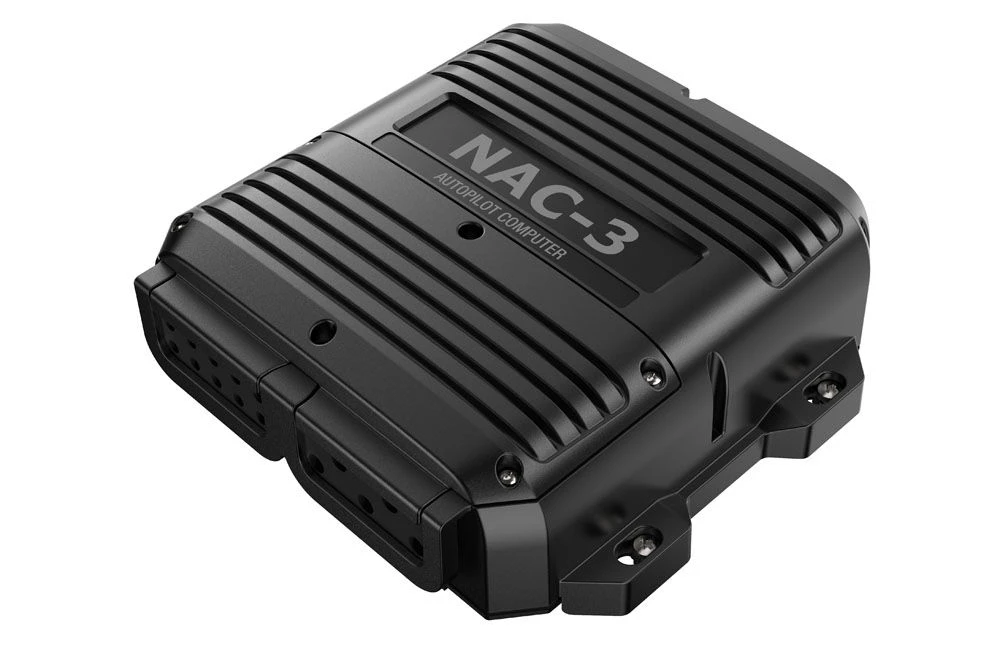

NAC-3 Autopilot ComputerThe NAC-3 Autopilot
Computer is the brains behind your B&G autopilot system. It
contains the electronics needed to operate a hydraulic steering
pump or mechanical drive unit, while also interfacing with other
components including heading sensors and rudder feedback units. The
NAC-3 was designed for boats ten metres (35 feet) or greater in
length and is rated to operate high-current pumps, mechanical drive
units, and solenoid valves (30 amps continuous/50 amps peak).

Features:

• B&G Reflex Sailing algorithms
• Plug and Play installation
• 12/24V input 8A continuous output, 12A peak
• Solenoid output capable
• 3A clutch output
• Optional Auto/Standby Switch

Precision-9 CompassThe Precision-9 Compass
supplies heading and rate-of-turn information to Simrad, B&G
and Lowrance autopilot, radar and navigation systems. Based on
reliable solid-state sensor technology, this compact compass offers
easy installation aboard any vessel.

Features:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA
  2000
• Heading and ROT calculated using sensor data from 9 axes of
  rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy of 2 after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast
  installation
• IPX7 waterproof. Best in class.
• Simple installation with a single NMEA 2000 connection

RF25 Rudder Feedback UnitThe RF25 is a medium
duty rudder feedback unit with a micro-C interface. The RF25 will
attach directly to industry standard micro-C systems for
straight-forward installation.

Features:

• +/- 120 Degree Measurement
• Precise and Accurate; +/- 0.5 Deg
• Micro-C Connectivity
• 5.5m attached micro-C Cable

In the box

Features:

• NAC-3 Course Computer
• Precision-9 Compass
• RF25 Rudder Feedback Unit
• NMEA 2000 Backbone kit
• Documentation

Features:

• Core components for a B&G Reflex autopilot system just add
  a drive unit and controller
• Ideal for boats above 10 metres (35 feet) in length
• Includes the high-current NAC-3 autopilot computer
• Compatible with high-current drive pumps, mechanical drives,
  hydraulic linear drives, and solenoid valves
• Control with the B&G Triton display and Triton keypad, or a
  networked multifunction display
• Includes the RF25N rudder feedback unit
• Includes the Precision-9 solid-state compass for accurate
  heading data thats automatically fine-tuned as you travel
• Includes all required NMEA 2000 network connectors and
  cables
• Easy setup with automatic tuning and compass calibration
• NMEA 0183 input

What’s in the box:

• RF25N Rudder Reference Sensor with Micro-C connector
• Micro-C Backbone Kit
• Precision-9 Compass
• NAC-3 Autopilot Computer
