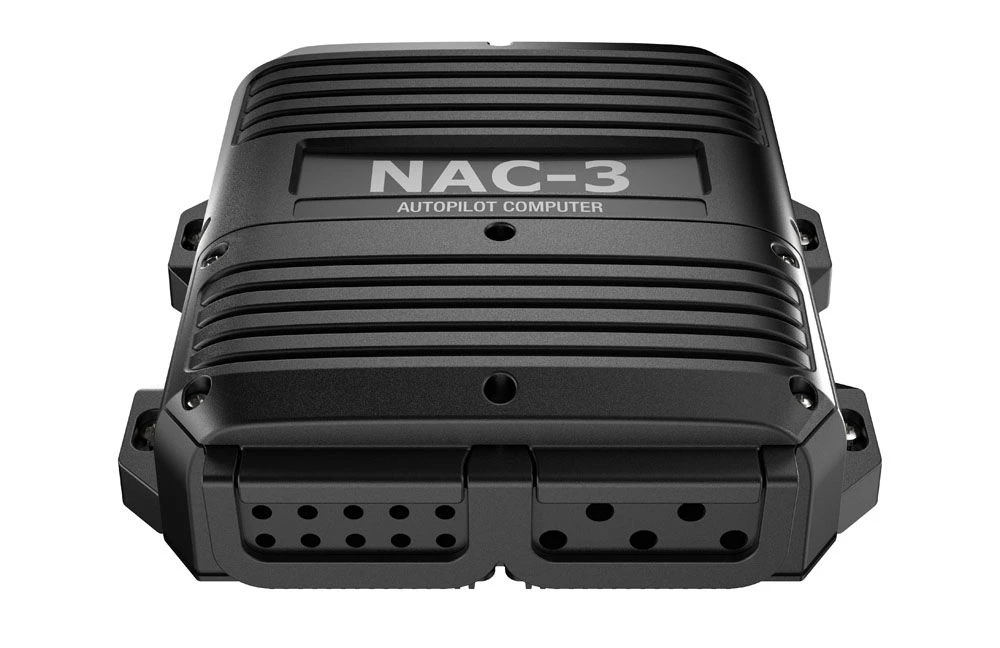

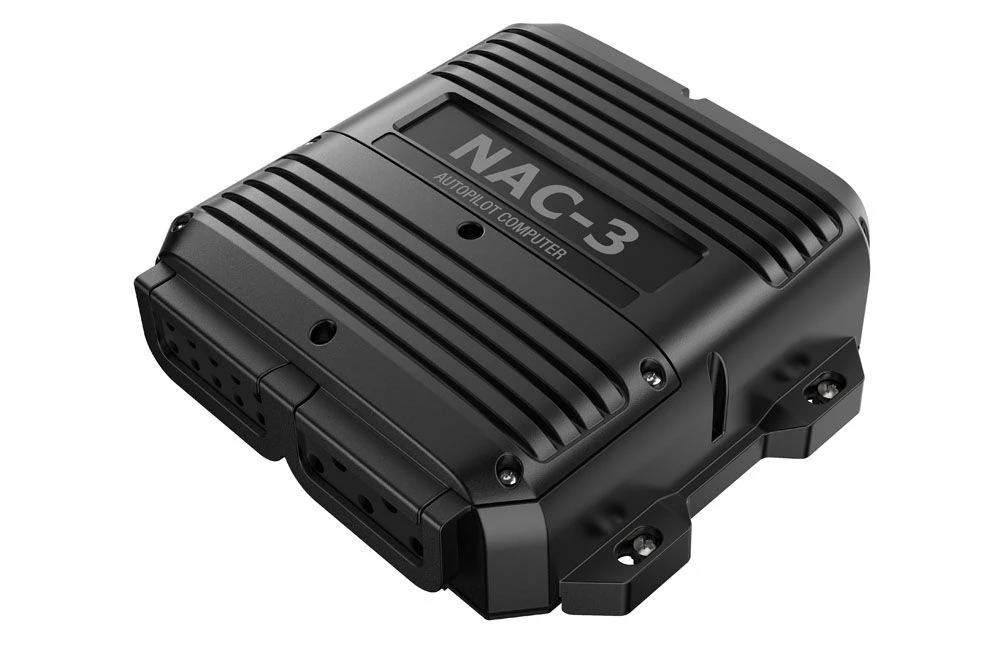

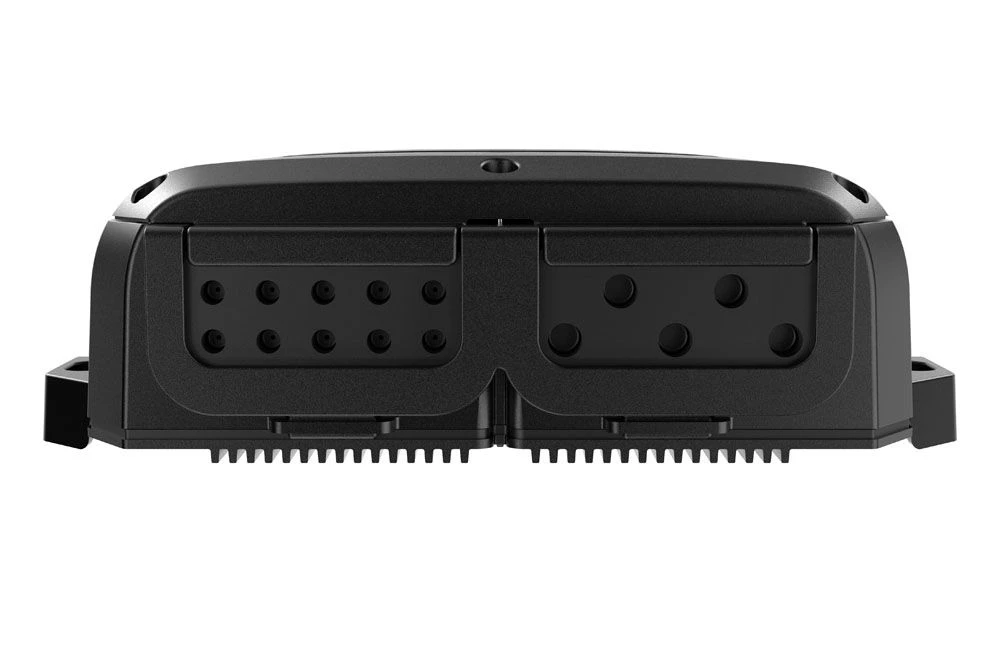

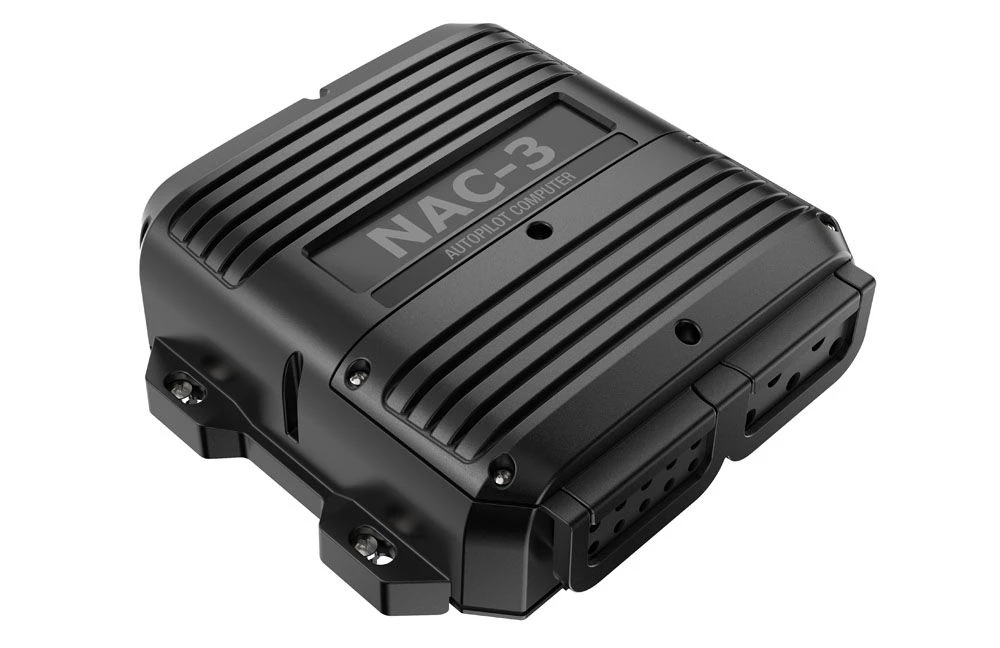

B&G B&G NAC-3 Autopilot Computer

The NAC-3 Autopilot Computer is the brains behind your B&G
autopilot system. It contains the electronics needed to operate a
hydraulic steering pump or mechanical drive unit, while also
interfacing with other components including heading sensors and
rudder feedback units. The NAC-3 was designed for boats ten metres
(35 feet) or greater in length and is rated to operate high-current
pumps, mechanical drive units, and solenoid valves (30 amps
continuous/50 amps peak).

B&G Reflex steering technology

Every B&G steering innovation builds upon a legacy
encompassing over sixty years of autopilot development, which
continues today at Navico’s autopilot research hub in Norway. This
legacy is exemplified by the Reflex algorithm: the software that
drives B&G steering technology. Reflex brings all those years
of research and on-water experience to your helm, for a smart pilot
you can trust to take the wheel.

High-Current Output

The NAC-3 Autopilot Computer is recommended for boats above 10
metres (35 feet) in length. It is rated for high-current output of
up to 30 amps continuous and 50 amps peak, plus a clutch output;
this is suitable to operate high-current drive pumps including the
Simrad RPU160 and RPU300, mechanical drives such as the Simrad
DD15, hydraulic linear drives such as the HLD2000 series, and
solenoid valves.

Rudder Feedback Units

Rudder feedback units are sensors that connect to your rudder
via a mechanical linkage and continuously report actual rudder
position to your autopilot computer allowing the B&G Reflex
steering algorithm to make the best-informed steering decisions
possible. The NAC-3 supports SimNet or NMEA 2000 connected RF25
feedback units, and rudder feedback sensors with variable frequency
output including the RF300.

Easy Installation

Industry-standard NMEA 2000 networking and NMEA 0183 input allow
simple connectivity to heading sensors, rudder feedback units,
autopilot controllers, and multifunction displays located anywhere
on board.

Features:

• Recommended for boats above 10 metres (35 feet) in length
• High-current output of 30 amps continuous, 50 amps peak
• Clutch output (3 amps maximum)
• Compatible with high-current drive pumps, mechanical drives,
  hydraulic linear drives, and solenoid valves
• Virtual rudder feedback for simplified installation aboard
  outboard and sterndrive (inboard/outboard) boats
• Supports RF25 rudder feedback units
• NMEA 2000 connectivity to heading sensors, rudder feedbacks,
  dedicated autopilot controllers, and multifunction displays
• NMEA 0183 input

Specifications:

• Waterproofrating: IPx2
• Compass Safe: 0,5m (20 inches)
• Weight: 0,7 kg (1,6 lbs)
• Power Consumption typical: 100mA + Drive load
• Supply Voltage: 12/24VDC +30 -10%
• Drive output: 12/24VDC. Rev. motor control 30A, 50A peak (1
  sec.). Solenoid control: 10A (min. 10mA)
• Operating Temperature Range: -15 to +55C (5 to 131F)
• NMEA 2000 Connectivity: 1x CAN terminal, 1 LEN
• Warranty Period: 2 years
• Dimensions W x H x D: 204 x 190 x 57mm (8,1 x 7,5 x 2,2′)
• Storage Temperature Range: -30C to +70C (-22F to +158F)
• Power Consumption max: 750W
• Mounting Type: Bulkhead
• NMEA 0183 Sentences supported: Input: AAM, ACK, APB, BOD, BWC,
  DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW,
  VHW, VLW, VTG, ZDA. Output: HDG (10Hz) or HDT (10Hz), RSA
  (5Hz)
• Recommended Fuse Rating: Internal fuse 30A (Slow)
• Compasssensor support: NMEA2000, NMEA0183
• Engine Drive systems integration: Reversible pump/motor,
  Solenoid valve on/off
• Rudder sensor s upport: RF300, RF45X, RF25N, RF70 and VRF

What’s in the box:

• N2K-T-RD Network T-Connector
• N2KEXT-2RD 2ft Network Extension Cable

Product Data
Sheet
