B&G B&G NAC-2 VRF Core Pack

The NAC-3 Autopilot Computer is the brains behind your B&G
autopilot system. It contains the electronics needed to operate a
hydraulic steering pump or mechanical drive unit, while also
interfacing with other components including heading sensors and
rudder feedback units. The NAC-3 was designed for boats ten metres
(35 feet) or greater in length and is rated to operate high-current
pumps, mechanical drive units, and solenoid valves (30 amps
continuous/50 amps peak).

NAC-2 Autopilot Core Pack: Comprising of the low-current NAC-2
autopilot computer, Precision-9 compass and NMEA2000 backbone kit.
Ideal for smaller vessels, designed to run small hydraulic drives
and mechanical drives for vessels up to 10 meters (33 feet) in

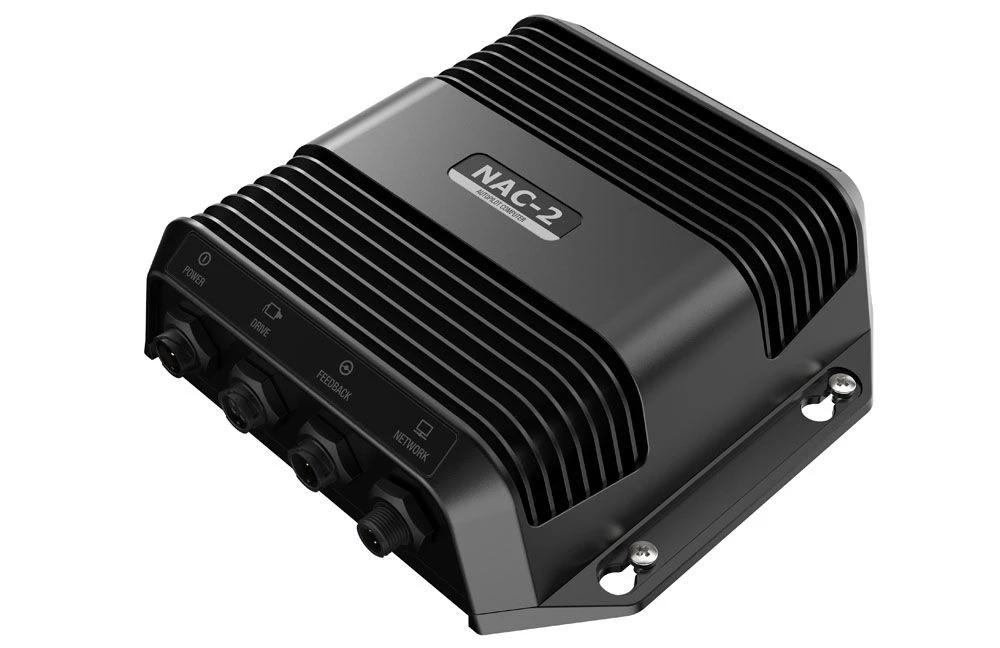

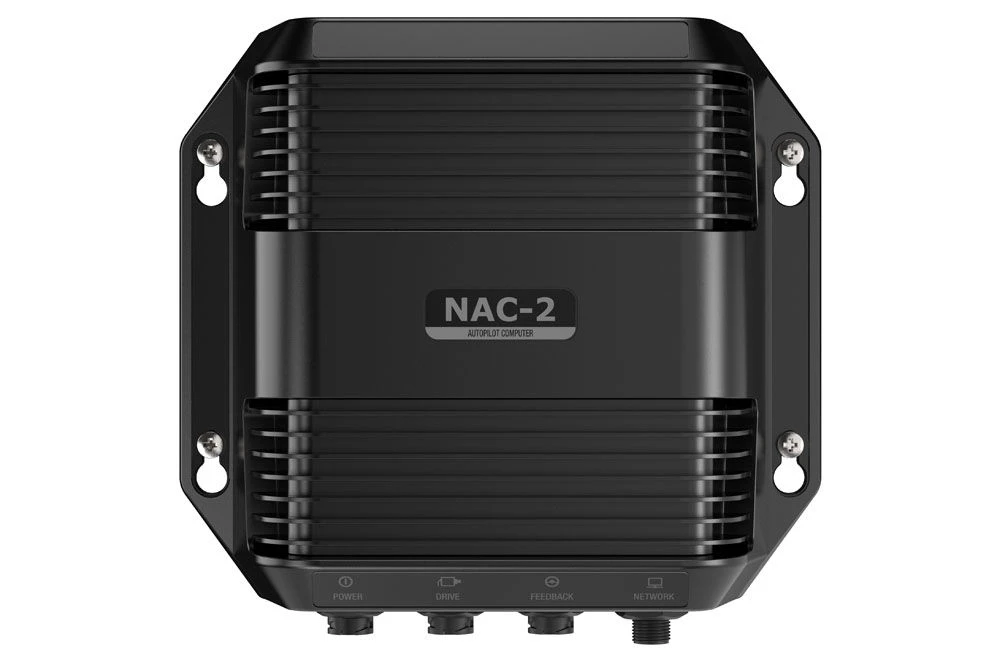

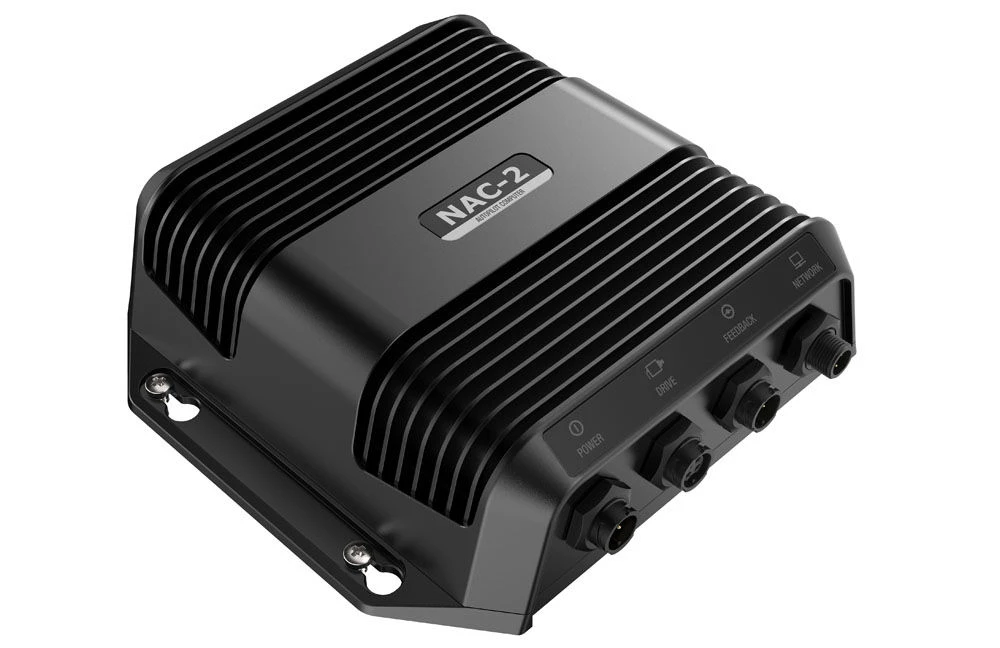

length.NAC-2 Autopilot ComputerThe NAC-2 Autopilot
Computer is the brains behind your autopilot system. NAC-2 contains
the control algorithms developed to helm a yacht across a broad
range of weather conditions and sea-states, alongside the
electronics needed to operate a hydraulic or mechanical drive unit,
while also interfacing with other components including heading
sensors and rudder feedback units. The NAC-2 was designed for boats
up to 10 metres (33 feet) in length and is suitable for low-current
hydraulic drives, mechanical drives, or solenoid valves with a
current rating of 8 Amps continuous (16 Amps peak).B&G Reflex
Sailing algorithmsPlug and Play installation12/24V input 8A
continuous output, 12A peakSolenoid output capable3A clutch
outputOptional Auto/Standby Switch

Precision-9 CompassThe Precision-9 Compass
supplies heading and rate-of-turn information to Simrad, B&G
and Lowrance autopilot, radar and navigation systems. Based on
reliable solid-state sensor technology, this compact compass offers
easy installation aboard any vessel.Heading, Rate Of Turn (ROT),
roll, and pitch output over NMEA 2000Heading and ROT calculated
using sensor data from 9 axes of rotation and motionAccurate and
reliable solid-state sensor technologyHeading accuracy of 2 after
calibrationEasily adjustable mounting bracket allows bulkhead or
up-mast installationIPX7 waterproof. Best in class.Simple
installation with a single NMEA 2000 connection

In the boxNAC-2 Course ComputerPrecision-9
CompassNMEA 2000 Backbone kitDocumentation

Features:

• Reliable autopilot performance based on Simrad Continuum
  steering technology
• Recommended for boats up to 10 metres (35 feet) in length
• Output of 8 amps continuous, 16 amps peak
• Clutch output (3 amps maximum)
• Compatible with low -current drive pumps, mechanical drives,
  hydraulic linear drives, and solenoid valves
• Virtual rudder feedback for simplified installation aboard
  outboard and sterndrive (inboard/outboard) boats
• Supports Simrad RF25 rudder feedback units
• Plug-and-play connectors for easy installation
• NMEA 2000 connectivity to heading sensors, rudder feedbacks,
  dedicated autopilot controllers, and multifunction displays

What’s in the box:

• Micro-C Backbone Kit
• Precision-9 Compass
• NAC-2 Autopilot Computer
