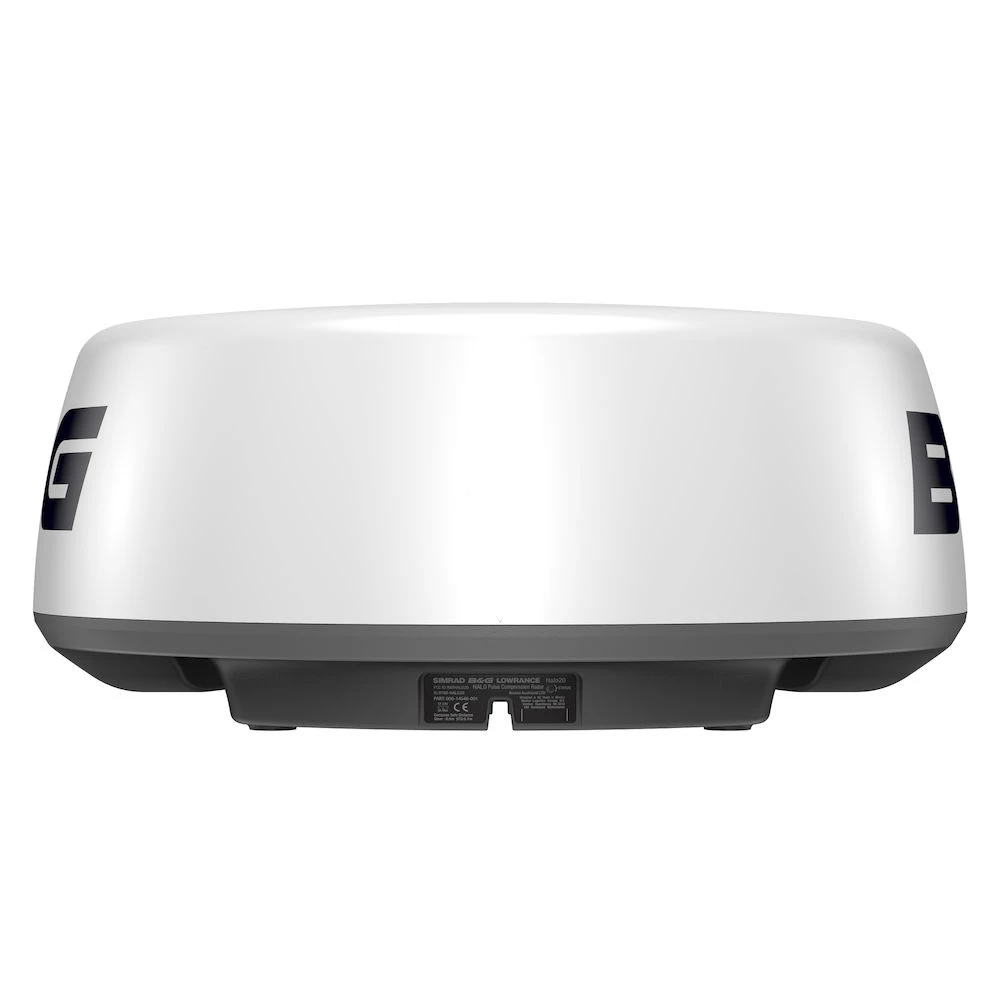

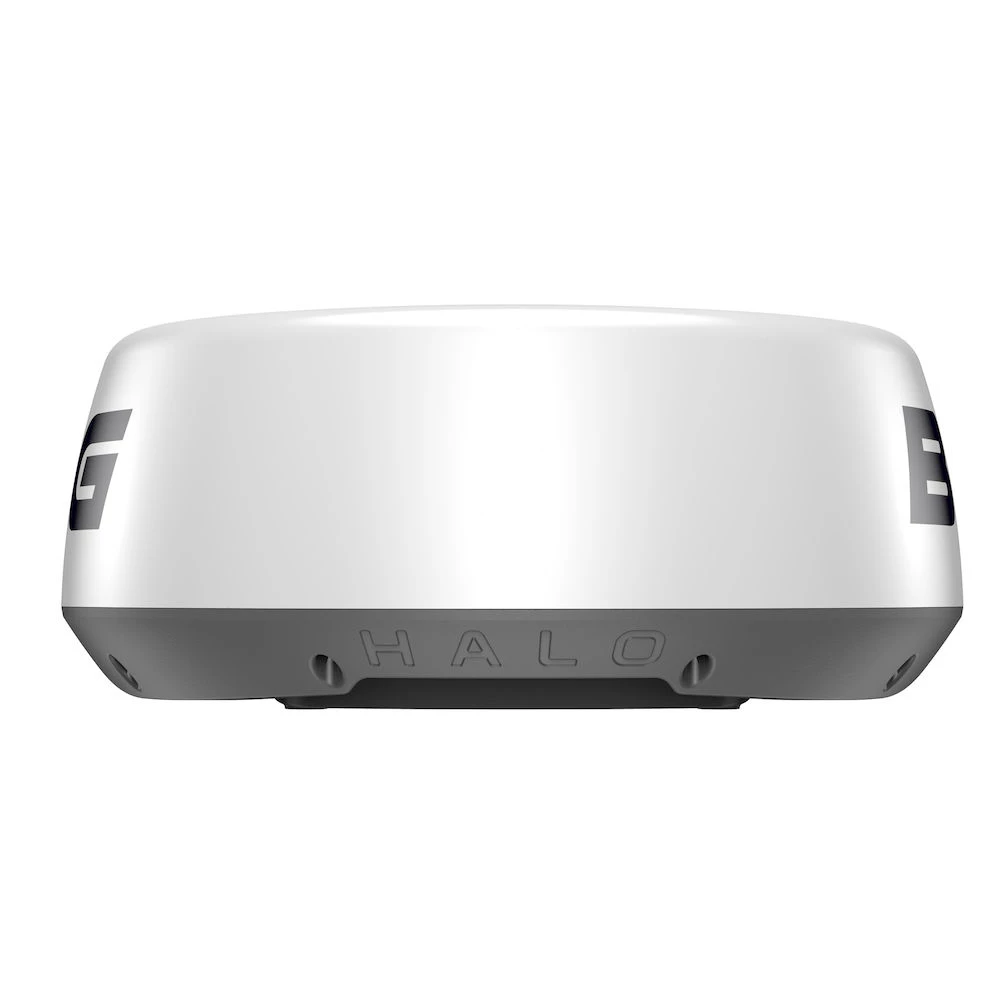

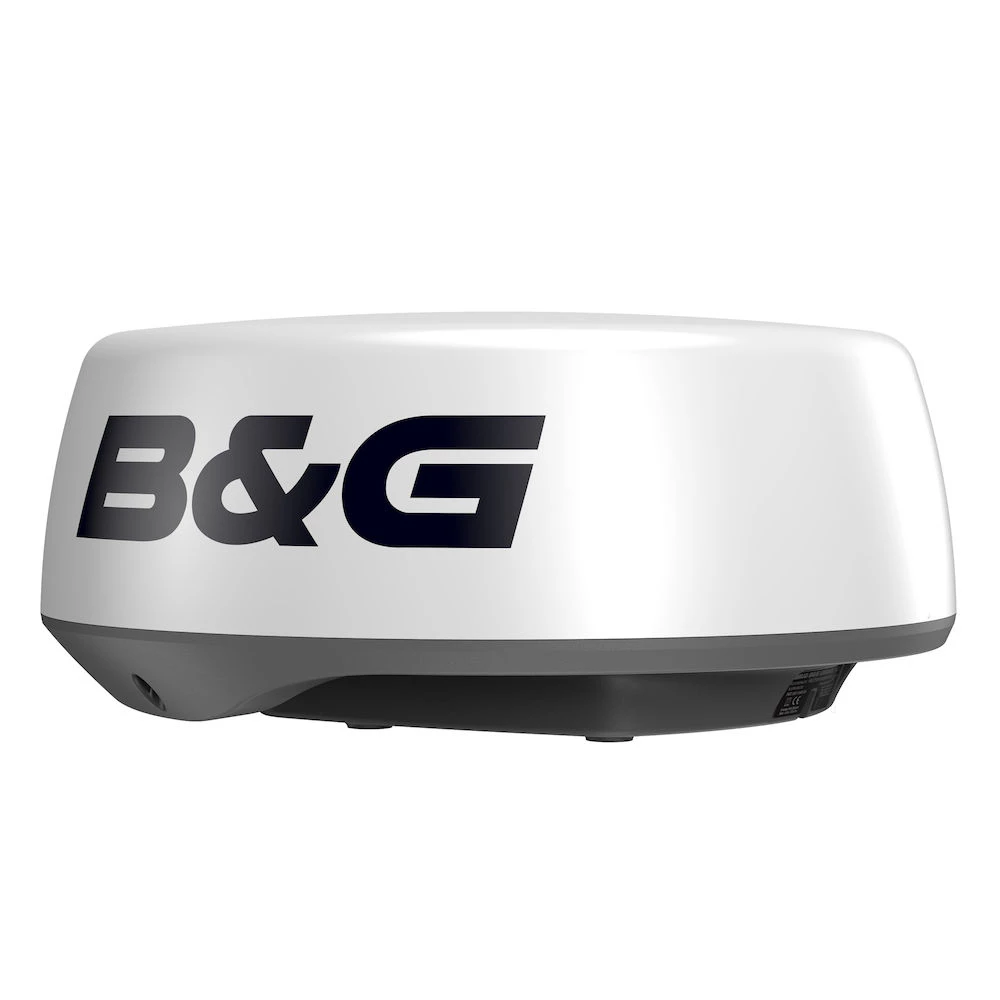

B&G B&G HALO20 Radar

A cost-effective way to increase situational awareness and collision avoidance, HALO20 is a compact dome radar with pulse compression technology that detects collision hazards and other targets in close and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for budget-conscious sailors.

Unrivalled Short-to-Mid-Range Performance

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready When You Are

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you need it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use

Harbour, Offshore, Weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

• 10W Pulse Compression
• 24 nm range from a compact 20-inch dome
• Unrivalled short range
• Radiation safe
• Easy operation with harbour, offshore and weather mode
• MARPA target tracking
• InstantOn
• Low Power Consumption
• Guard Zones

Specifications:

Specifications

Waterproofrating

IPX6

Supply Voltage

10.5 – 31.2 VDC (12/24V systems)

Max Wind Speed

100 knots (51 m/s)

Power Consumption typical

18W

Warranty Period

2 Years

Power Consumption max

20W

Max Range, scale

24 NM

Rotation speed

24 RPM

Operating Temperature Range

-25 degrees to + 55 degreesC (-13 degrees to +130 degreesF)

Beam width

4.9 degrees H x 25 degrees V

Weight

5.9 kg (13 lbs) without cable

Min Range, scale

50 m / 200 ft / 50 yd

Dimensions W x H x D

510mm dia x 223 mm H. (20′ dia x 8.8′ H)

Recommended Fuse Rating

5A

Humidity

95% RH at 35 degreesC (95 degreesF)

Interface

BandG MFD

Approvals Compliance

FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

Radar Modes

Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion

Radar Technology

Pulse Compression
