B&G B&G ForwardScan Long Stem Transducer Kit

Know what lies ahead with ForwardScan. This forward-looking
sonar provides a clear two-dimensional image of the bottom in front
of your vessel, allowing you to navigate shallow or poorly-charted
waters with confidence. With real-time updates and a
forward-looking view of up to eight times your current depth,
ForwardScan lets you relax and enjoy a safer day on the water.The
ForwardScan Long Stem Transducer is compatible with selected Zeus
and Vulcan displays, and is ideal for installation in thick or
steeply-inclined hulls.

ForwardScan sonar was named winning Consumer Safety Equipment at
the 2015 Miami International Boat Show Innovation Awards. The best
way to stay safe is to not hit anything in the first place! judging
committee member David Schmidt, Boating Writers International.

ForwardScan Technology
ForwardScan provides
forward-looking, two-dimensional sonar imaging of the bottom ahead
of your boat. In shallow, unfamiliar, or poorly-charted waters,
ForwardScan is a powerful defence against running around, and an
invaluable tool for locating secure sites to drop anchor. The
ForwardScan transducer operates at 180kHz to reduce interference
from traditional 200kHz echosounders, and provides: Maximum forward
view of 8X your current depth e.g. at 3m (10ft) depth, see up to
24m (80ft) ahead. Nominal forward view of 4-5X your current depth
e.g. At 3m (10ft) depth, see 12-15m (40-50ft) ahead.

Integration
ForwardScan connects quickly and easily to B&G Zeus3 and Vulcan
(check older models for compatibility) multifunction displays via
the StructureScan port, with no additional hardware necessary. On
Zeus2 systems ForwardScan may be connected via an optional SonarHub
sounder module.

Bottom Colour Tracking
Bottom Colour
Tracking offers a solid 2D rendering of the bottom ahead of your
vessel for an uncluttered, immediately understandable view. Make
fast and well-informed navigational decisions, without needing to
interpret the individual data points returned by the echosounder.
Bottom color tracking with data points Bottom color tracking
only

ForwardScan Technology
ForwardScan provides
forward-looking, two-dimensional sonar imaging of the bottom ahead
of your boat. In shallow, unfamiliar, or poorly-charted waters,
ForwardScan is a powerful defence against running around, and an
invaluable tool for locating secure sites to drop anchor.
ForwardScans forward range scale is automatically synchronised with
the length of the heading line: in split-screen
ForwardScan/Navigation view, the full distance from your vessel to
the end of the heading line is represented in 2D on the ForwardScan
display. Quickly reconcile ForwardScan data with charted depth and
your present course, for a comprehensive understanding of whats
ahead.

Easy Installation

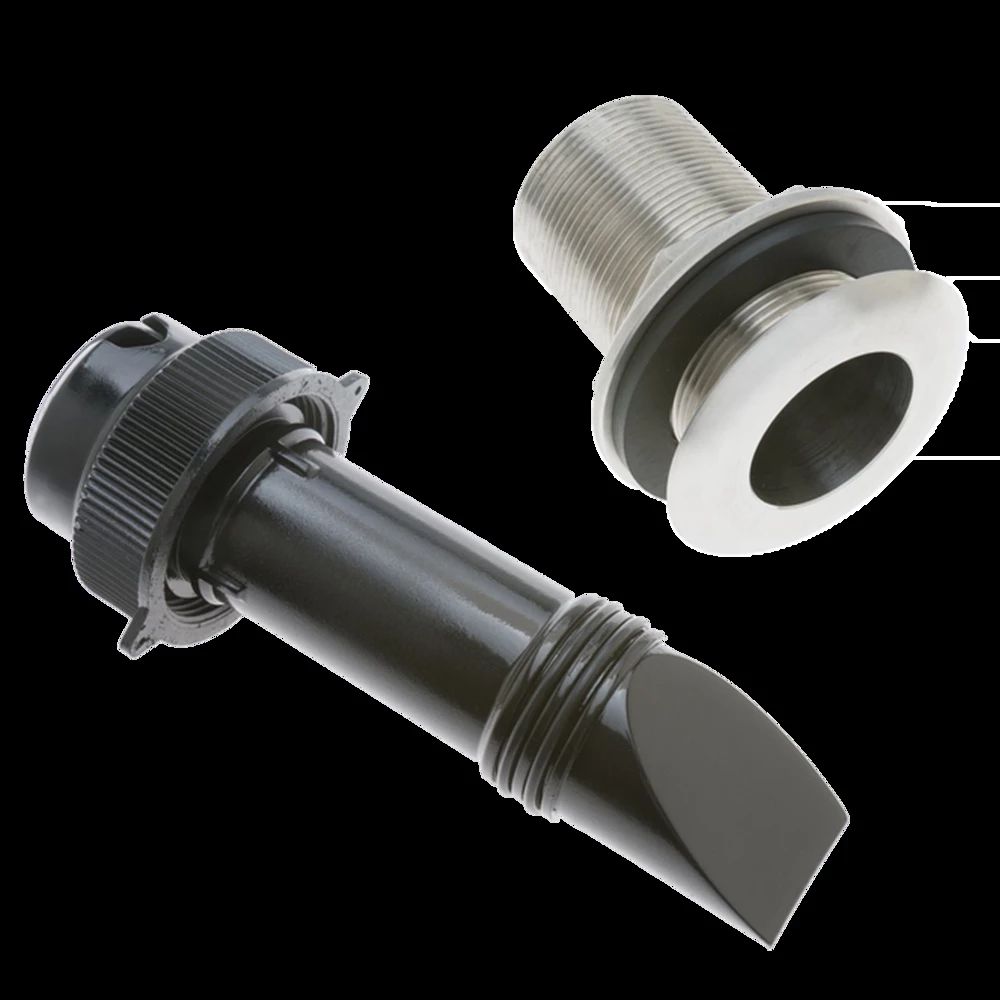

The ForwardScan Long Stem
Transducer features an extended stainless steel through-hull mount
and specially designed fairing block to accommodate hulls up to
47.6 mm (1 7/8 inch) in thickness and up to 28 degrees
deadrise.

Features:

• Easy to use
• Forward-looking 2D sonar imaging
• Bottom Colour Tracking for a simplified bottom view
• Heading Line View combines ForwardScan depth data into heading
  line on charts
• Shallow depth alarm
• Maximum forward view of 8X current depth, nominally 4-5X
  current depth
• Operates at 180 kHz, reducing interference from traditional 200
  kHz echosounders
• Built-in temperature sensor
• 50.8 mm (2 inch) stainless steel through-hull fitting
• Connects directly to Simrad GO XSE, NSS evo2, or NSO evo2 via
  SonarHub sounder module
• Long-stem design for use with thick or steeply-inclined
  hulls

What’s in the box:

• ForwardScan Long Stem Fairing Block
